Jual Advantech CIRCUIT BOARD, 2-axis Stepping/Pules-type Servo Motor Card (PCI-1220U-AE)

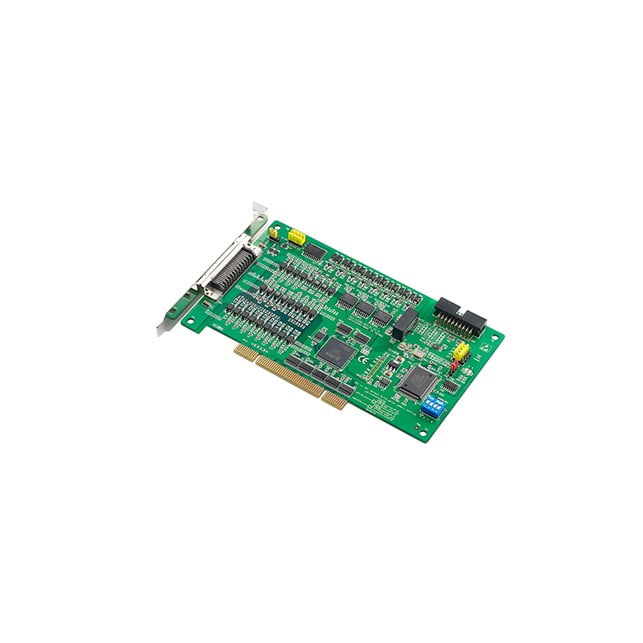

Advantech CIRCUIT BOARD, 2-axis Stepping/Pules-type Servo Motor Card (PCI-1220U-AE)

Category	Attribute	Value
General	Connectors	1 x 50-pin SCSI female connector
General	Humidity (Operating)	5~95% RH (non-condensing)
General	Humidity (Storage)	5~95% RH (non-condensing)
Counter/Encoder Input	Counting Range	32-bit
Encoder Type and Interface	Counts per Enc. Cycle	x1, x2, x4 (A/B phase only)
Encoder Type and Interface	Input Range	0~1 VDC for low; 3.5~5 VDC for high
Encoder Type and Interface	Input Type	Quadrature (x1, x2, x4 A/B phase) or CW/CCW
Encoder Type and Interface	Max. Input Frequency	4 MHz under x4 A/B phase mode
Pulse Type Motion Control	Interpolation	2-axis linear, 2-axis circular
Pulse Type Motion Control	Max. Output Speed	4 Mbps
Pulse Type Motion Control	Motor Driver Support	Pulse-type servo/stepping
Pulse Type Motion Control	Pulse Output Type	Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)
Pulse Type Motion Control	Step Count Range	±2, 147, 483, 646
Pulse Type Motion Control	Velocity Profiles	T-Curve, S-Curve
Frequency	Signal Input	Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC
Local I/O	General Input Signal	Input voltage: 24 VDC Max. Input delay: 100 us Max. (isolation delay) Signal: EMG (emergency stop) ORG, LMT+, LMT- INPOS (in position signal) LTC (counter latch) RDY (servo ready) ALARM (servo alarm)
Local I/O	General Output Signal	Output voltage: Open collect 24 VDC Max Output delay: 100 us Max. (isolation delay) Sink current: 100 mA per channel Signal: CMP (position compare in range output) SVON (servo on) RALM (reset driver alarm) ERC (counter clear signal)

Advantech CIRCUIT BOARD, 2-axis Stepping/Pules-type Servo Motor Card (PCI-1220U-AE)
